This article is about: Setting up the Active key for USB magnetic card reader
Quick Setup Guide:
-
Connect the card reader to the computer using a USB cable.
-
Open check-in in the Magicline
-
Select “Member Name / Card Number” (top left)
-
the card through the card reader.

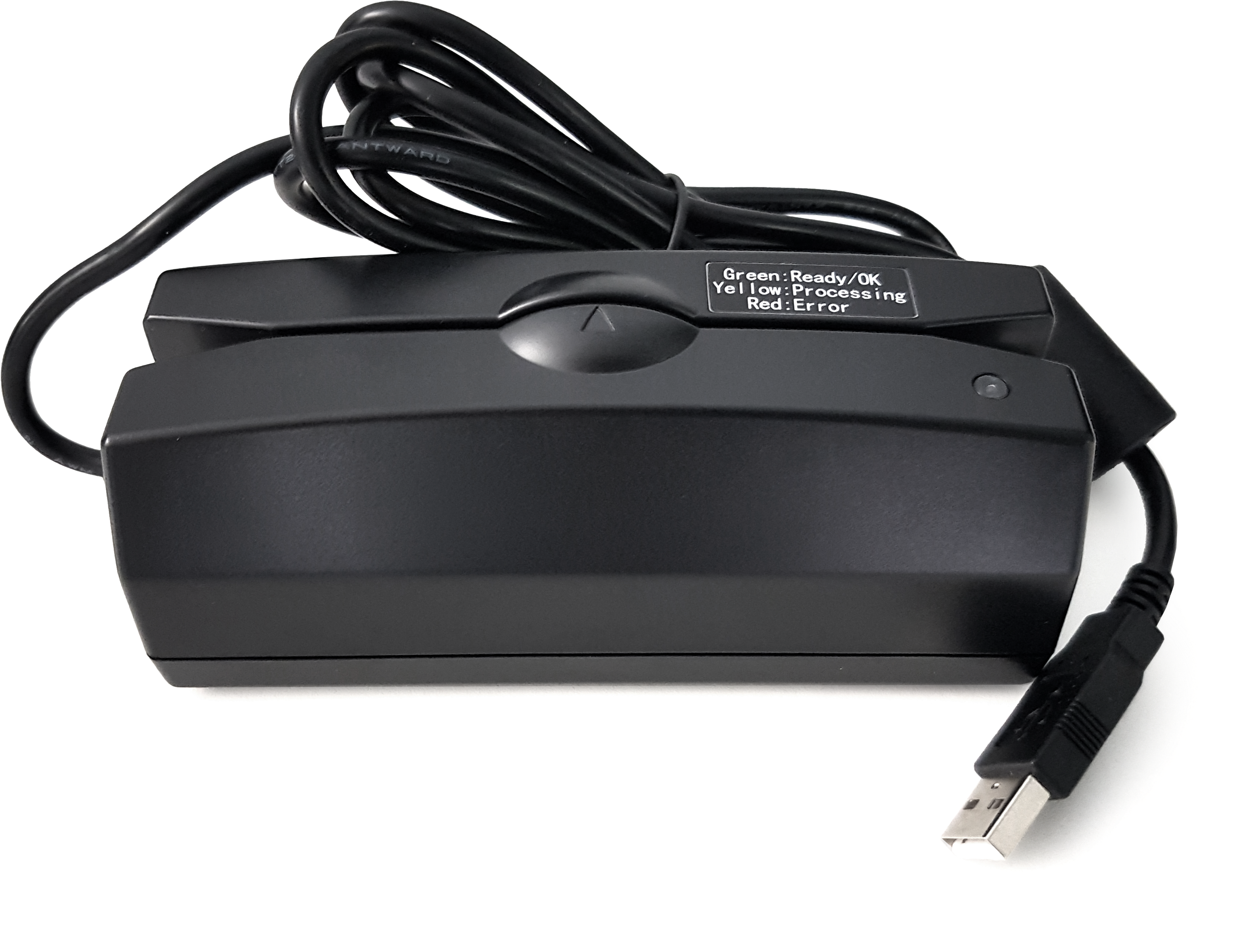

Would you like to connect an AK980 USB magnetic card reader from Active Key to your Magicline and thus control your check-in? Here you can find out what needs to be considered when setting up.
How to set-up the card-reader
First connect the card reader to your computer with a USB cable. Once the device has been detected, open your Magicline software and go to the check-in area . At the top left you will find the field member name / card number. Click on the box, then swipe a card through the reader. Now the card number appears on the screen of your Magicline. If the displayed number is already assigned to a member, you have even just completed your first successful check-in.
Pay attetion the following at check-in:
-
Your magnetic cards must always be precoded, otherwise no data can be read.
-
Always make sure that you click in the check-in field or the cursor is blinking in the check-in field before swiping the card.
-
The device only supports manual check-in mode. You can find out what the exact difference is between manual and automatic check-in mode after clicking on the button.
How to assign cards to members
-
Open the profile of the member you want to assign a card to.
-
Click on the three dots in the tile with the member name and then on Add a new access card .
-
A new window will now open. Click in the white line again (to the left of the Read button) and swipe your card through the reader - the card number will appear in the field.
Finally, Save . Finished. The card is now assigned to the member.
