In this article you will learn: How to configure and install your touchpoint device.
Quick guide:
-
Go to Settings/Studio displays/Touchpoint devices.
-
Add a new touchpoint device
-
Go to Settings/Access Control/Device Manager
-
Add a new access device or select an existing one
- Select the task "Self-Service Touchpoint" and then your touchpoint device
- Under Settings/Studio-Screens/Touchpoint device download configuration script and run it on the touchpoint
Add touchpoint device

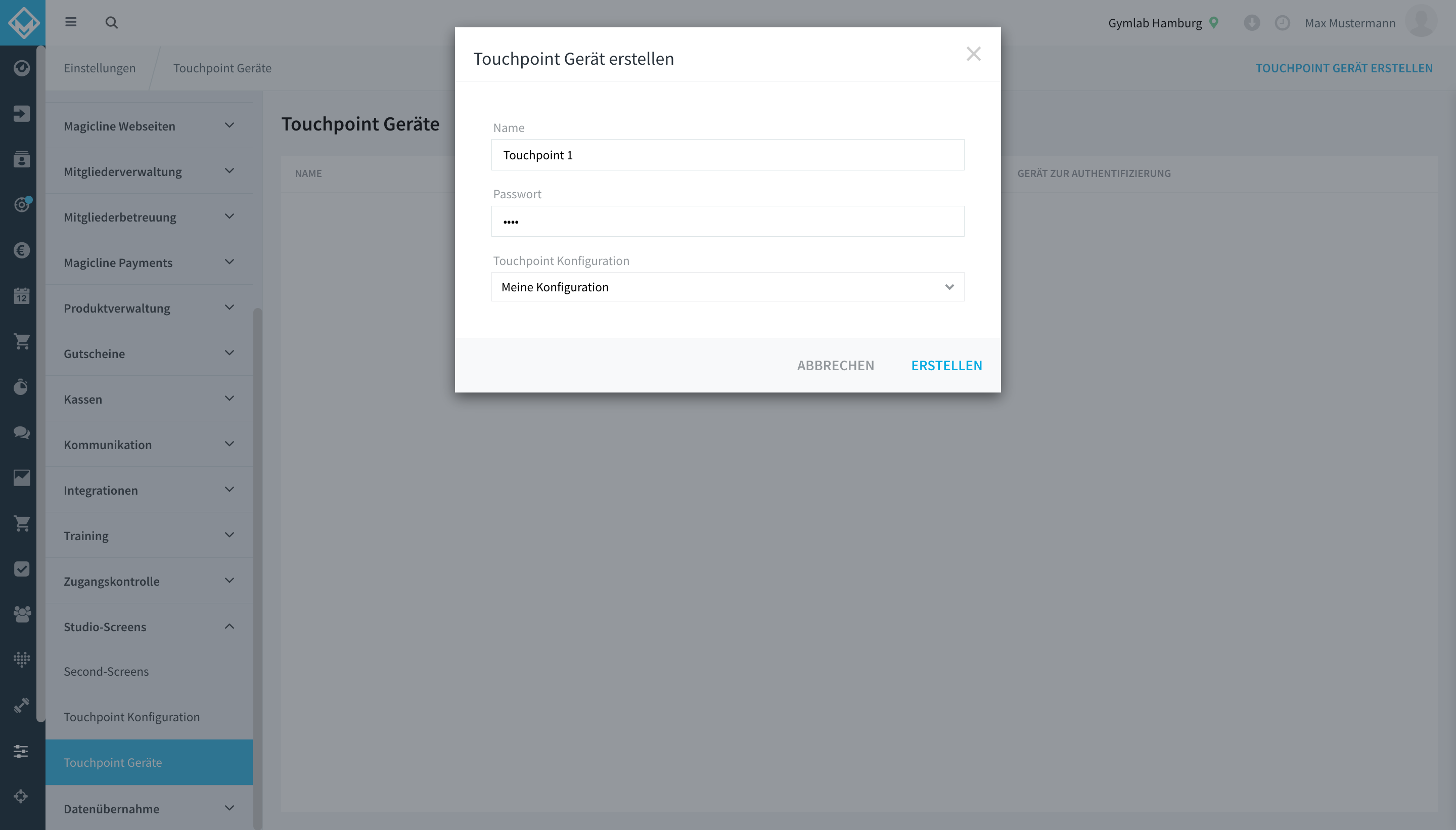

To add a touchpoint device, go to Settings/Studio displays/Touchpoint Device in your Magicline and click on Create Touchpoint devices in the upper right corner. Then choose a name and assign a password. You'll need the password later for studio staff to set it up, and it's independent of your members' authentication process. Also select your touchpoint configuration. Then click on "Create".
To learn how to create a touchpoint configuration and make customizations, see the Configure Studio Touchpoint article.
Add an access device in Device Manager
To authenticate your members via the membership card or transponder, you need an access device. You can add this device in your Magicline under Settings/Access Control/Device Manager . Select an existing device manager or create a new one. Here you can find more information about setting up a device manager.

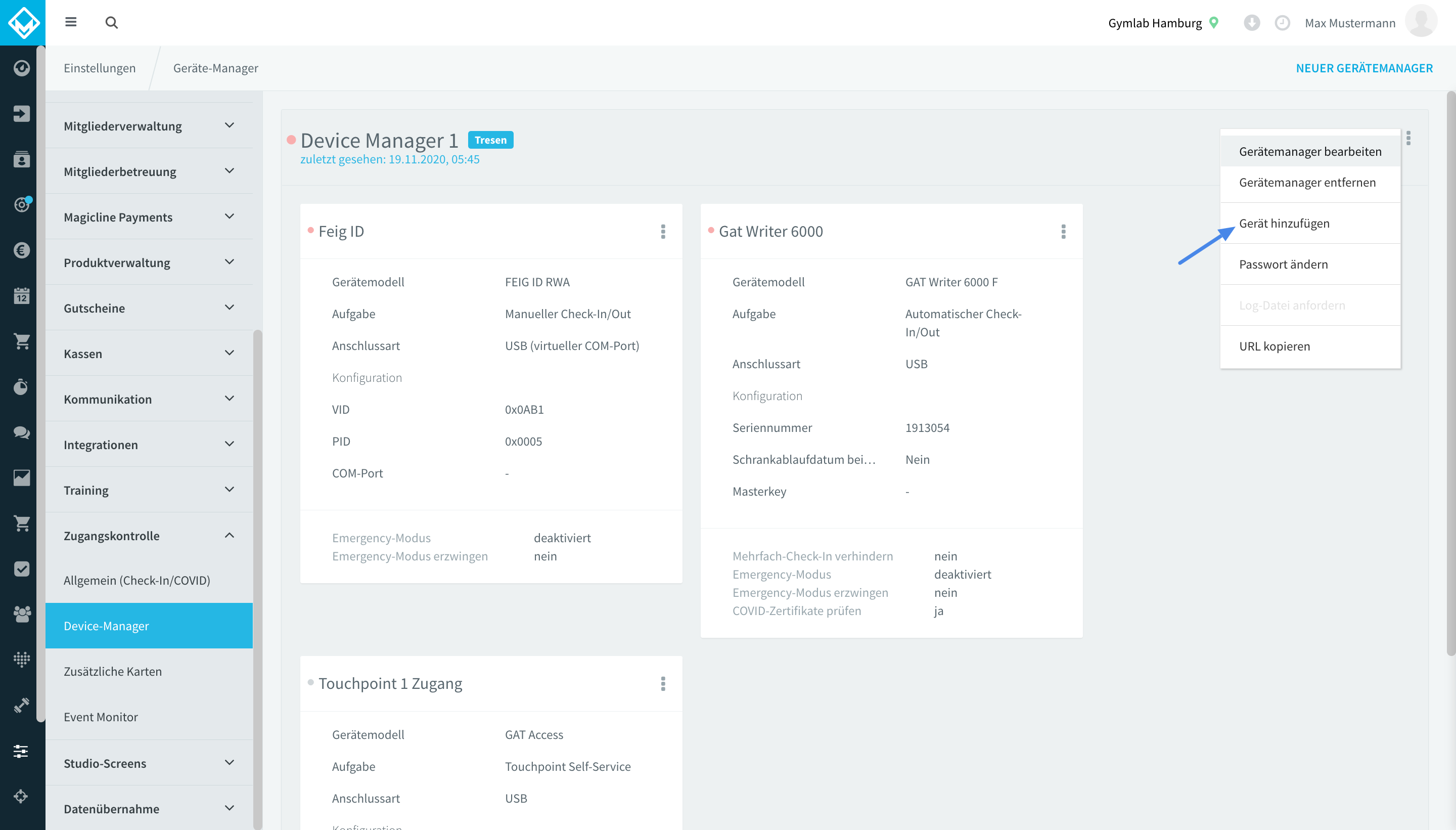

Once you have opened the Device Manager, click on "Add Device" in the three-dot menu at the top right.

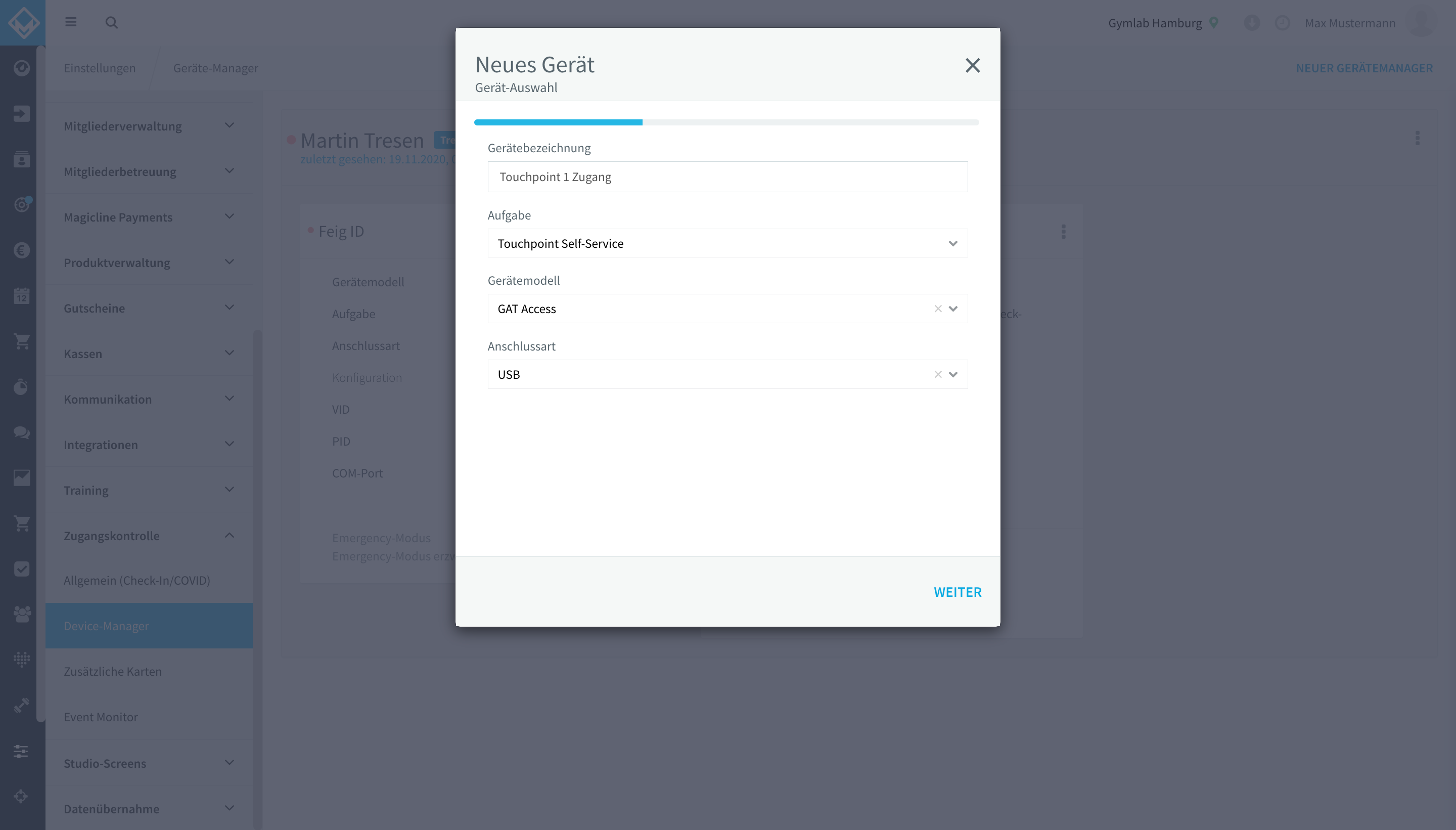

Now select a name, as task "Touchpoint Self-Service" and the device model and connection type. If you are not sure, take a look at this article on connecting devices.
In the next step, you can select whether to set a cabinet expiration date when checking in/checking out.

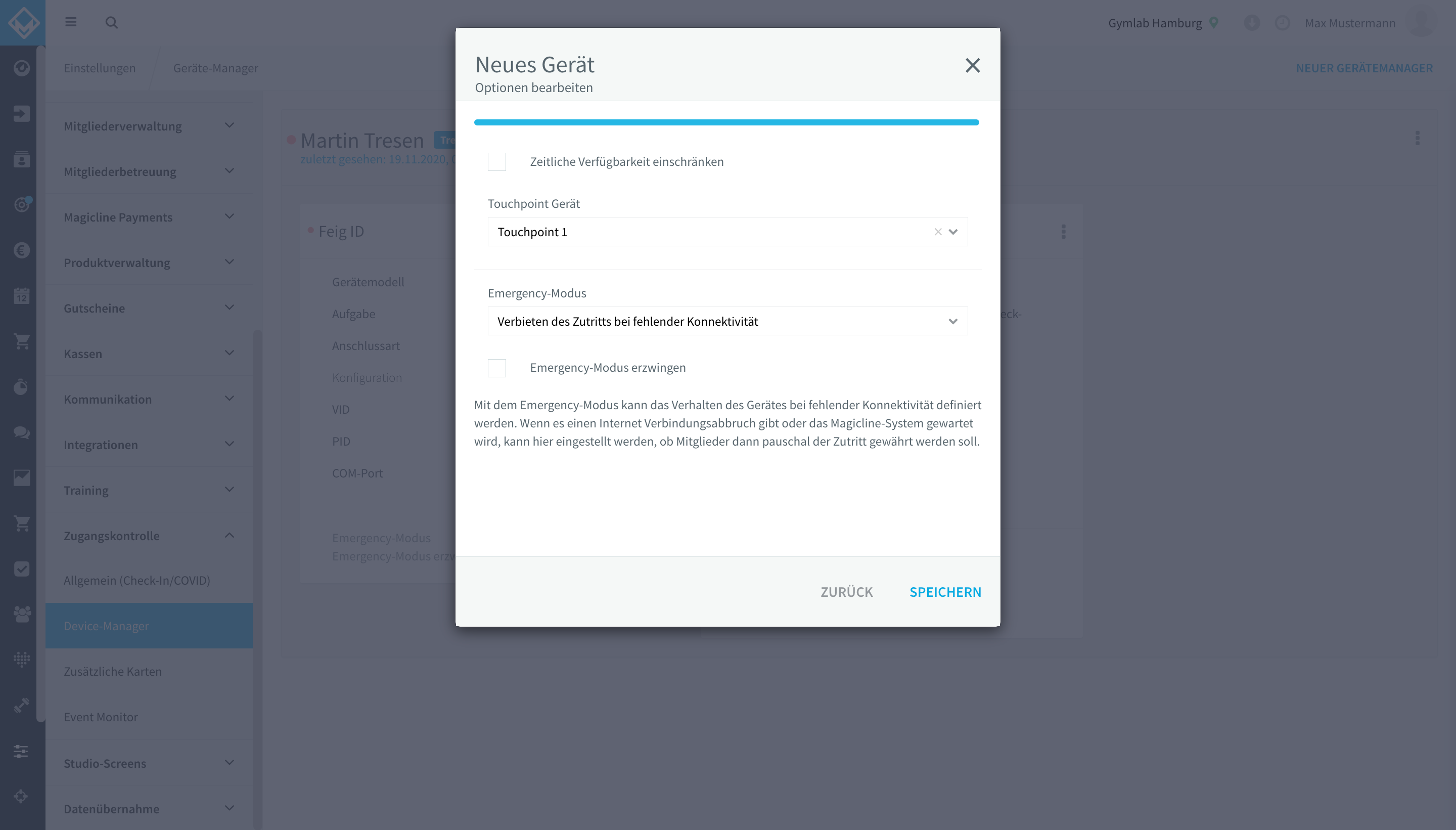

In the last step, select the touchpoint device you created at the beginning from the list under "Touchpoint Device" and click "Save".
Set up touchpoint display

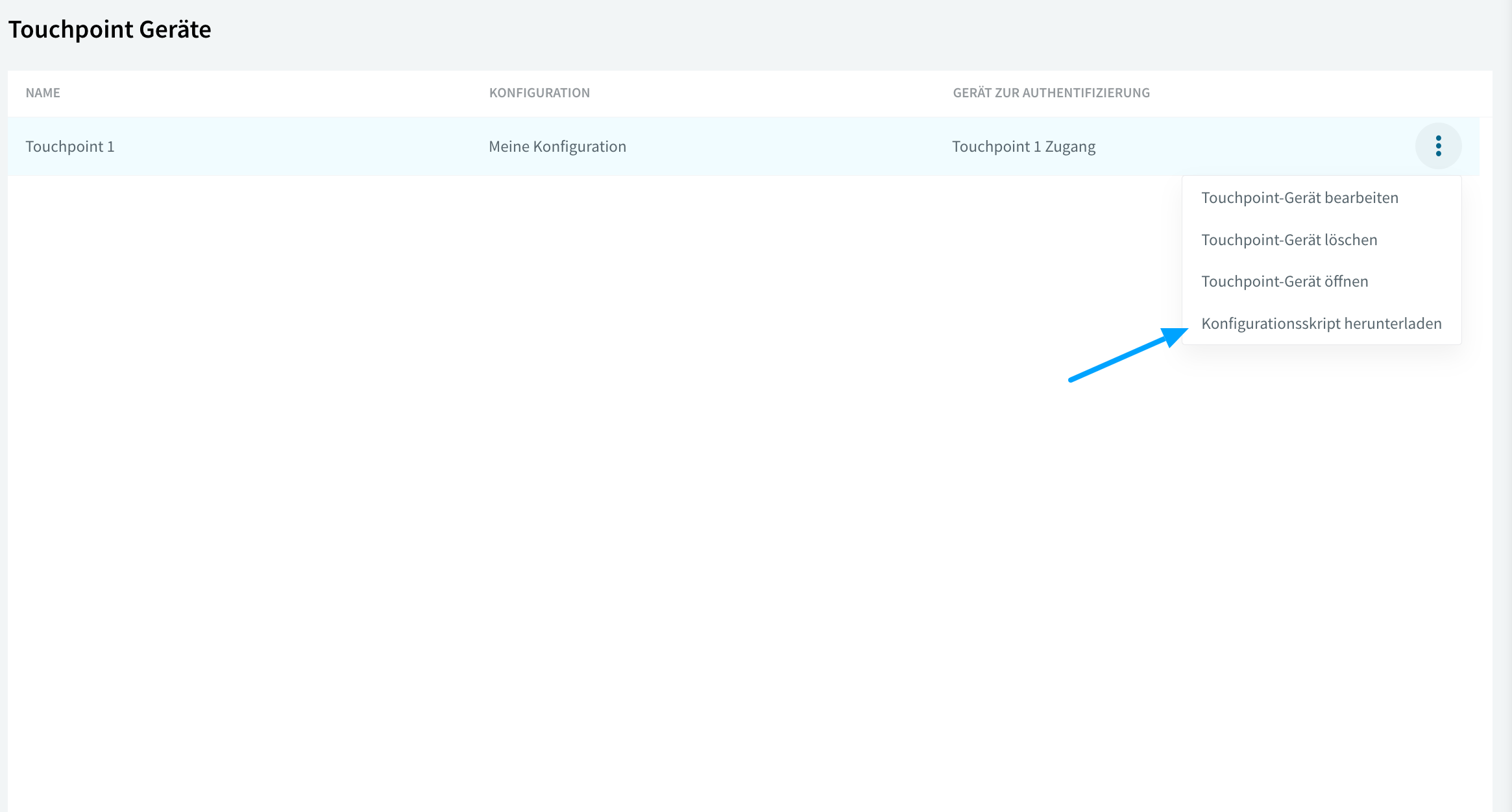

In the last step you only have to execute the configuration script on your touchpoint device. To do this, go to Settings/Studio displays/Touchpoint devices in your Magicline. Then click on "Download configuration script" in the three-dot menu of the desired device.

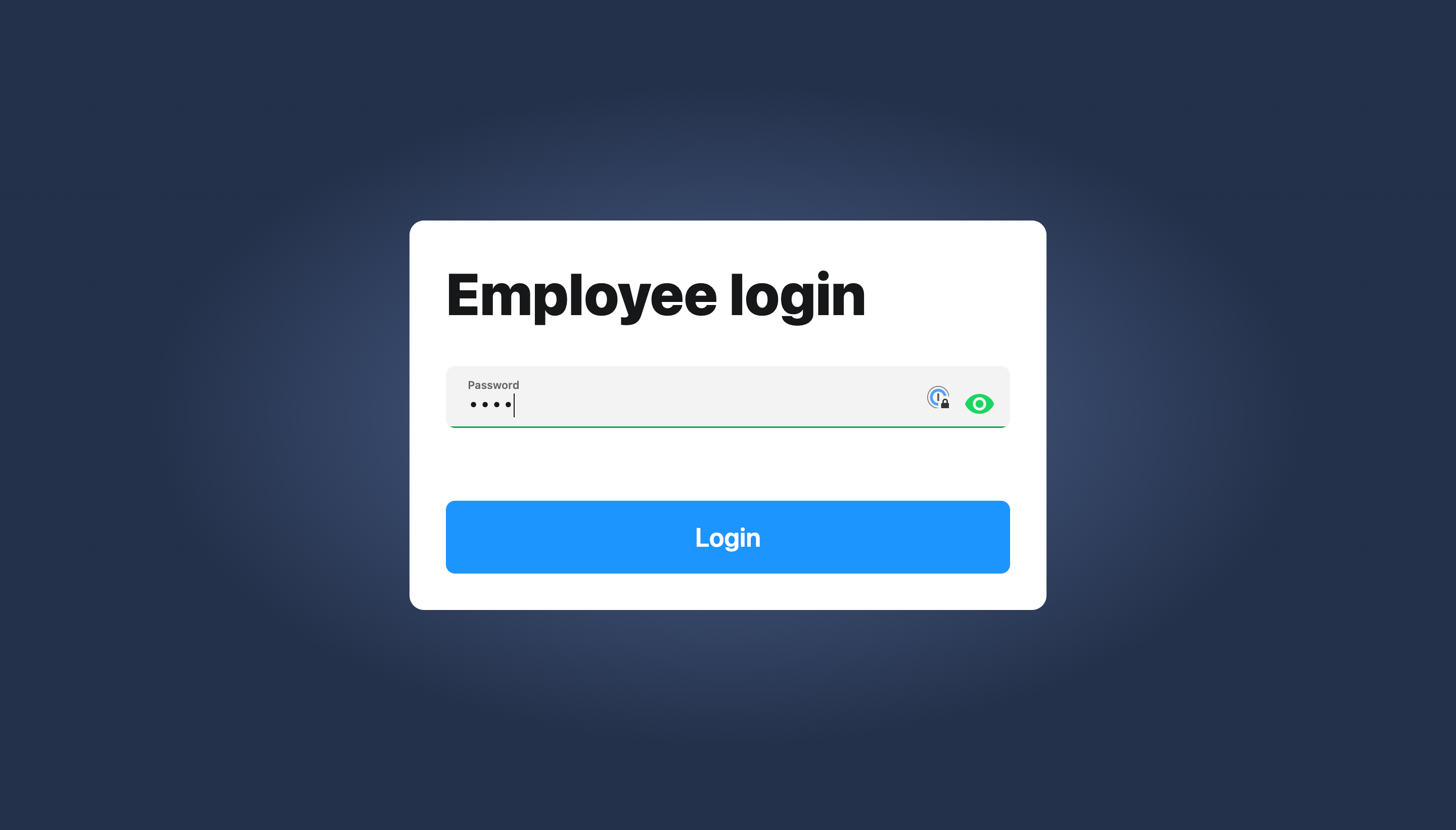

Then run the .bat file on your Touchpoint device and enter the password you assigned in the first step.
In the article Configure Studio Touchpoint you will learn how to create and install your Touchpoint device.
