In this article, you will learn: How to configure locker information for Gantner devices

GAT Access
Configure Mifare Transponder
Configure Legic Carrier
Save Settings
Edit or Delete Segments

GAT Access

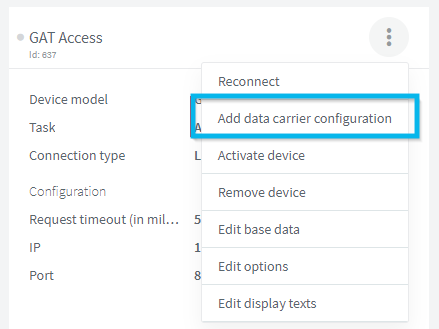

The GAT Access is technically only capable of reading locker information (writing is not possible). For the reader to retrieve the information, a carrier configuration must be stored on the device. To add a carrier configuration, click on the corresponding menu item and select "Add carrier configuration."

Image 1.png

Configure Mifare Transponder

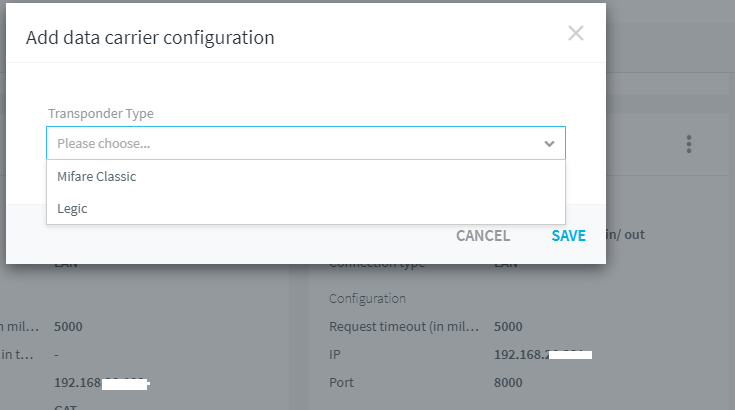

Select the appropriate transponder type.

Image 2.png

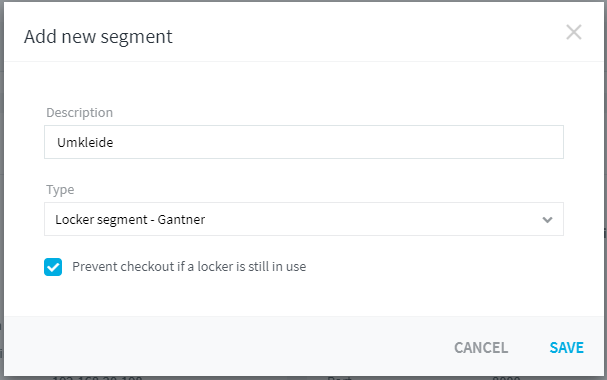

For Mifare transponders, you should also select the segment type (currently, only Ganter segments are supported). If you want to prevent checkout when a locker is still locked, activate the corresponding checkbox.

Image 3.png

Image 3.1.png

Configure Legic Carrier

For Legic carriers, select the transponder type Legic. Here too, only Gantner segments are supported. If you want to prevent checkout when a locker is still locked, activate the corresponding checkbox.

Save Settings

Don't forget to save the settings by clicking "Save."

Edit or Delete Segments

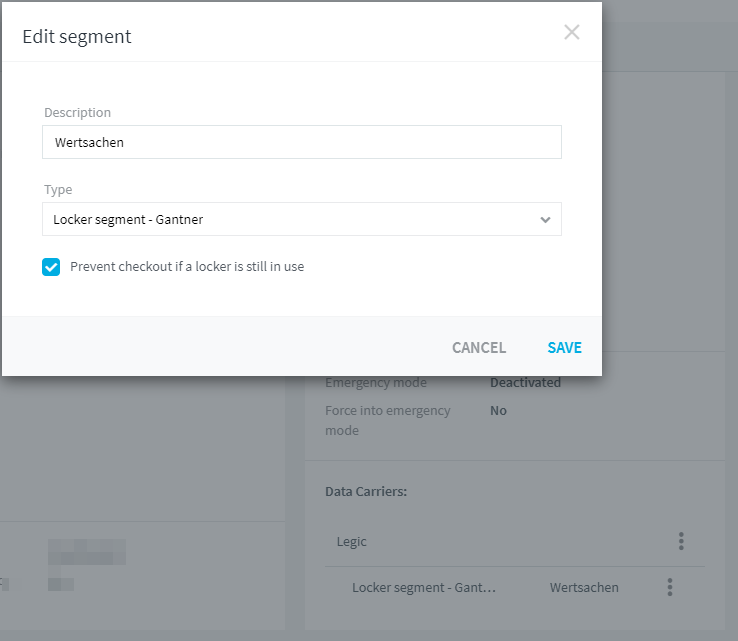

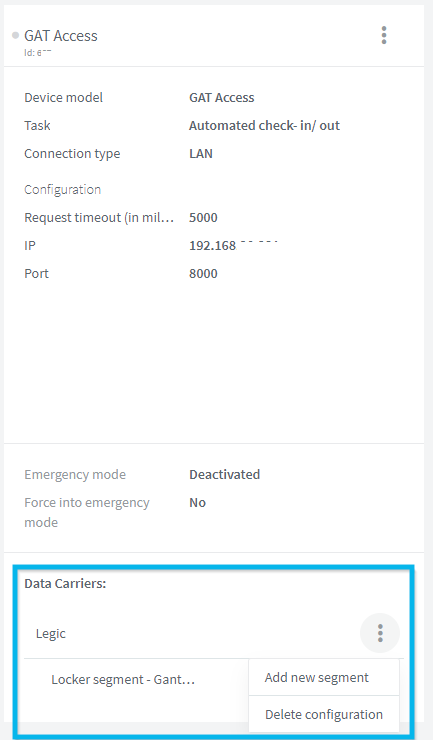

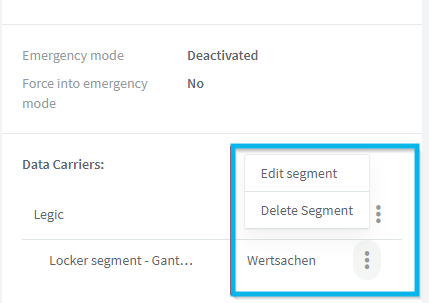

To edit or delete the created segments, click on the corresponding three-dot menus.

Image 4.png

Image 5.png

```
