In this article, you will learn: The correct configuration of the GAT NetWriter
Quick Guide:
Mifare Configuration

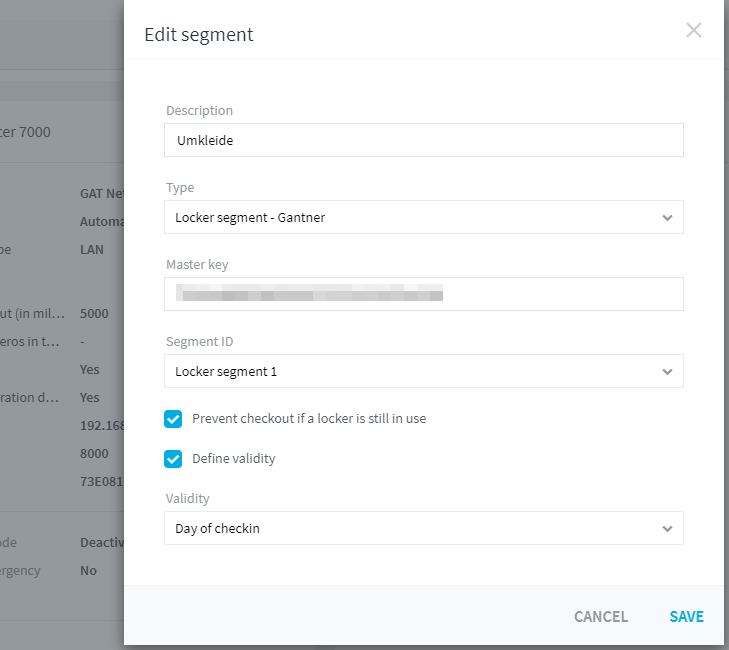

Currently, only Ganter segment types are supported.
If the validity is to be written during check-in (check-in day, regardless of check-in, or indefinitely), the correct Gantner master key (36 digits) must also be entered.
This setting defines when a lock can be used, either:
- On the day of check-in
- From the check-in time for the specified duration
- Independently of check-in (always)
If this setting is activated, corresponding data will be written to the transponder during check-in.

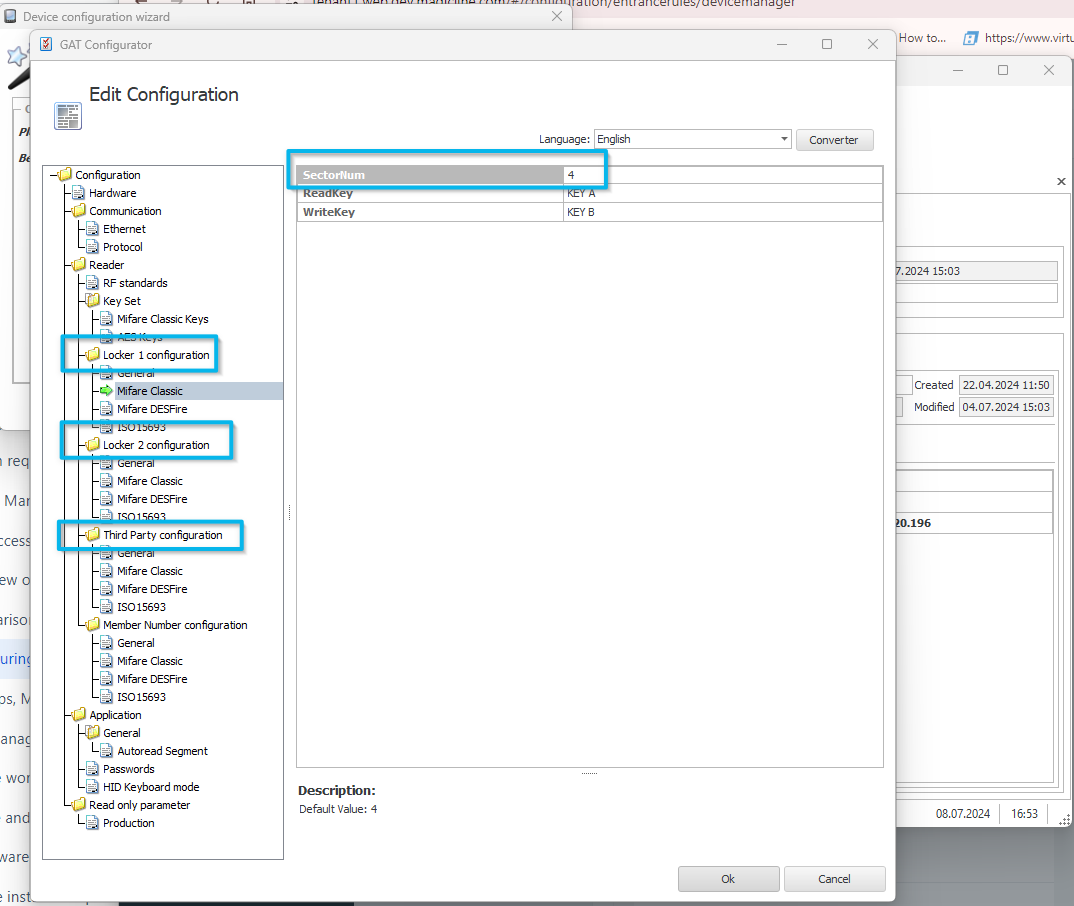

The GAT NetWriter supports 3 segments (Locker 1, Locker 2, or third-party), which must already be correctly configured in the reader settings (e.g., GAT Configuration Manager). In this screenshot, Locker 1 is set to sector number 4 (or block address 4). In the DeviceManager, you only need to specify which locker configuration from the reader should be used.
ISO15693 Configuration

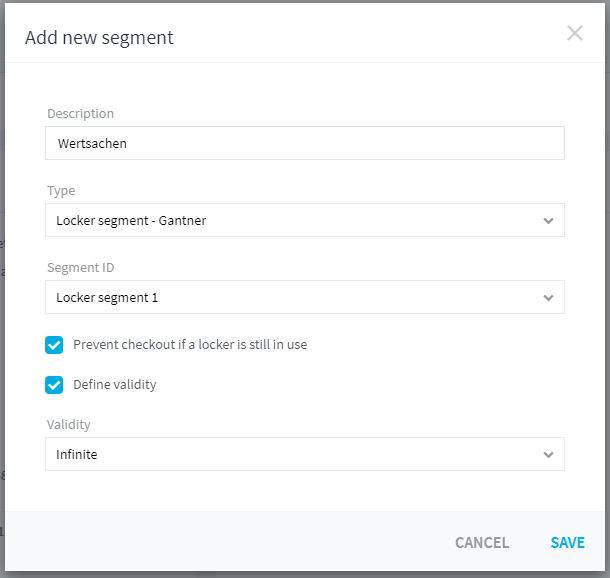

Currently, only Ganter segment types are supported.
If the validity is to be written during check-in (check-in day, regardless of check-in, or indefinitely), then check the appropriate box.
This setting defines when a lock can be used, either:
- On the day of check-in
- From the check-in time for the specified duration
- Independently of check-in (always)
If this setting is activated, corresponding data will be written to the transponder during check-in.

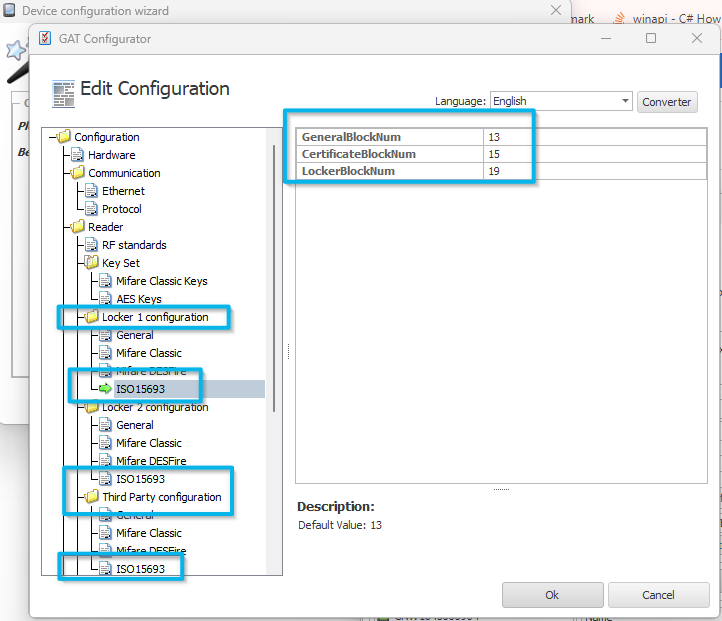

The GAT NetWriter supports 3 segments (Locker 1, Locker 2, or third-party), which must already be correctly configured in the reader settings (e.g., GAT Configuration Manager). In the DeviceManager, you only need to specify which locker configuration from the reader should be used.
