In this article, you will learn how to install and set up the ACR1252U NFC Reader on your system. You will find out which drivers are required and how to check if the installation was successful.
Contents:
- Requirements
- Hardware Installation
- Driver Installation
- Verify Installation
- Common Issues and Solutions
Fast Lane
- Connect the ACR1252U NFC Reader to your PC (USB-A or USB-C).
- Check the device manager to see if the reader is recognized.
- If necessary, install the drivers from the manufacturer’s website.
- Test the reader with an NFC card.
Requirements
To successfully install the ACR1252U NFC Reader, you will need:
- A free USB-A or USB-C port
- An operating system with driver support (Windows)
- If necessary, the driver from the manufacturer’s website
Hardware Installation
Installing the ACR1252U is straightforward:
- Connect the device to a free USB port.
- Wait for the operating system to automatically detect the device.
- If the reader is not automatically recognized, install the necessary drivers.
Note: Some systems recognize the reader automatically, while others require manual driver installation.
Driver Installation
If your operating system does not automatically recognize the ACR1252U, download the drivers:
- Visit the ACS driver page.
- Download the appropriate driver for your operating system.
- Install the driver and follow the on-screen instructions.
Verify Installation
After installation, you can check if the ACR1252U is properly recognized:

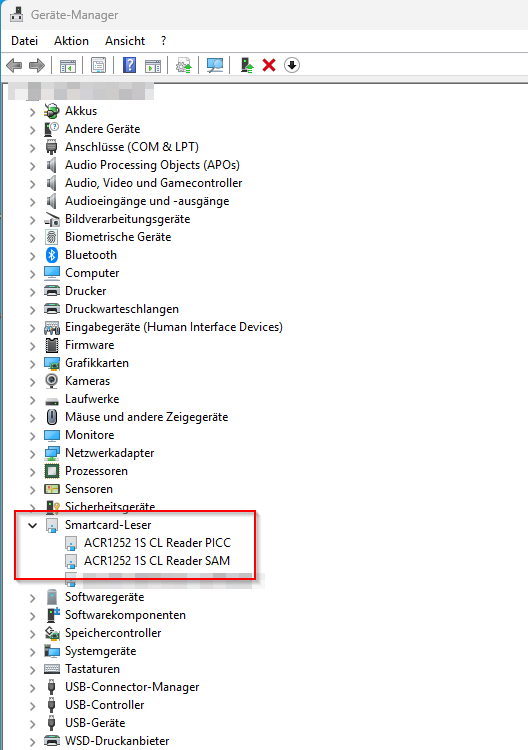

- Open the Device Manager (Windows)
- Look for Smart Card Readers and check if "ACR1252 1S CL Reader PICC" and "ACR1252 1S CL Reader SAM" are displayed.
Common Issues and Solutions
Device not recognized?
- Check the USB connection and try a different port.
- Install the latest driver.
- Restart the system and try again.
Driver installation fails?
- Ensure you are using the correct driver version for your operating system.
- Temporarily disable antivirus software and try the installation again.
Reader does not work with NFC cards?
- Check if the card is compatible with ISO 14443 or MIFARE.
- Try using a different NFC card.
For more details, refer to the attached documents.
