In this article, you will learn how to configure the different segment types for GAT G7 Access / GAT G7 Advanced Access.
Supported Segment Types
GAT G7 Access / GAT G7 Advanced Access support Legic, Mifare, or ISO15693.
Mifare
Currently, only Gantner segment types are supported.

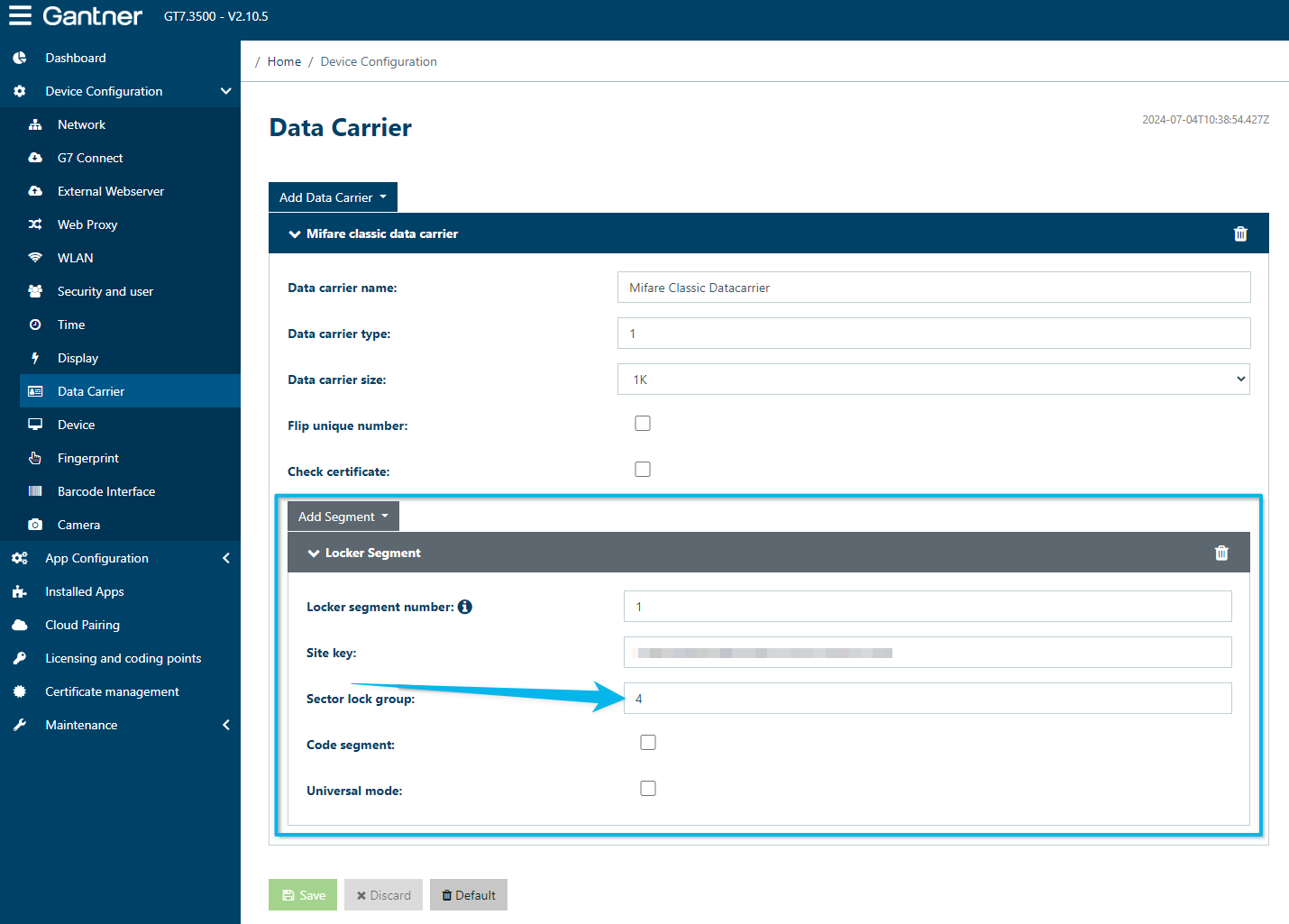

The segment must be correctly configured in the G7 device configuration (Web interface of the G7 Reader). In the G7 device configuration, the Gantner site key (master key) and the correct sector of the locker group (or block address) must also be entered.

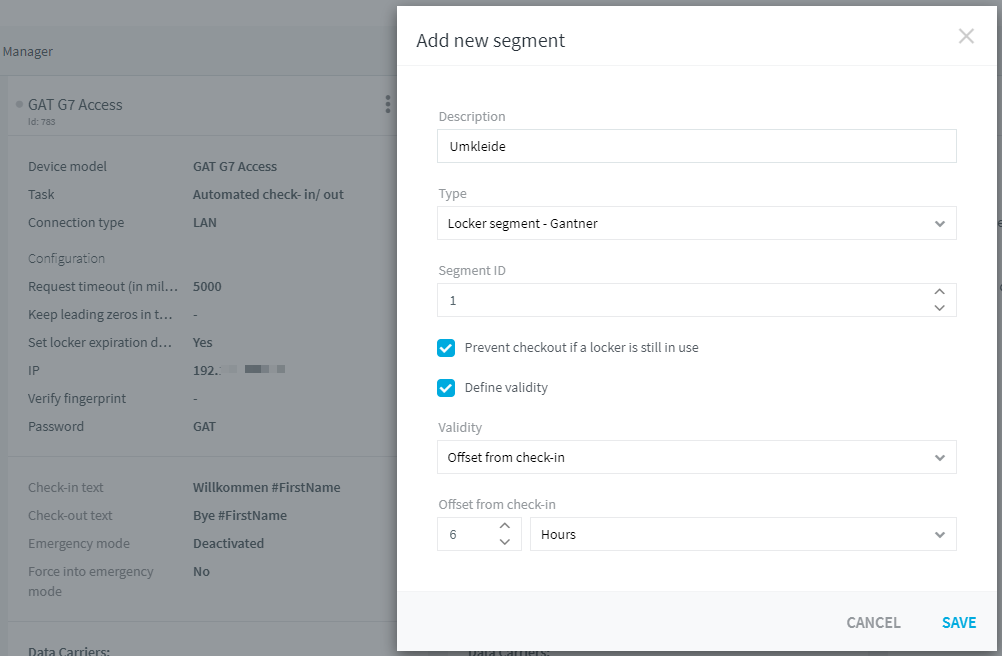

In the configuration in the Device Manager, only the segment number (segment ID) needs to be specified, which is to be used for this segment.
If validity is to be written during check-in, enable the corresponding checkbox and, if necessary, set the offset parameters.
This setting defines when a lock can be used, either:
- On the day of check-in
- From the time of check-in, for the specified period
- Independently of check-in (always)
If this setting is enabled, the corresponding data will be written to the transponder during check-in.
Legic
Currently, only Gantner segment types are supported.

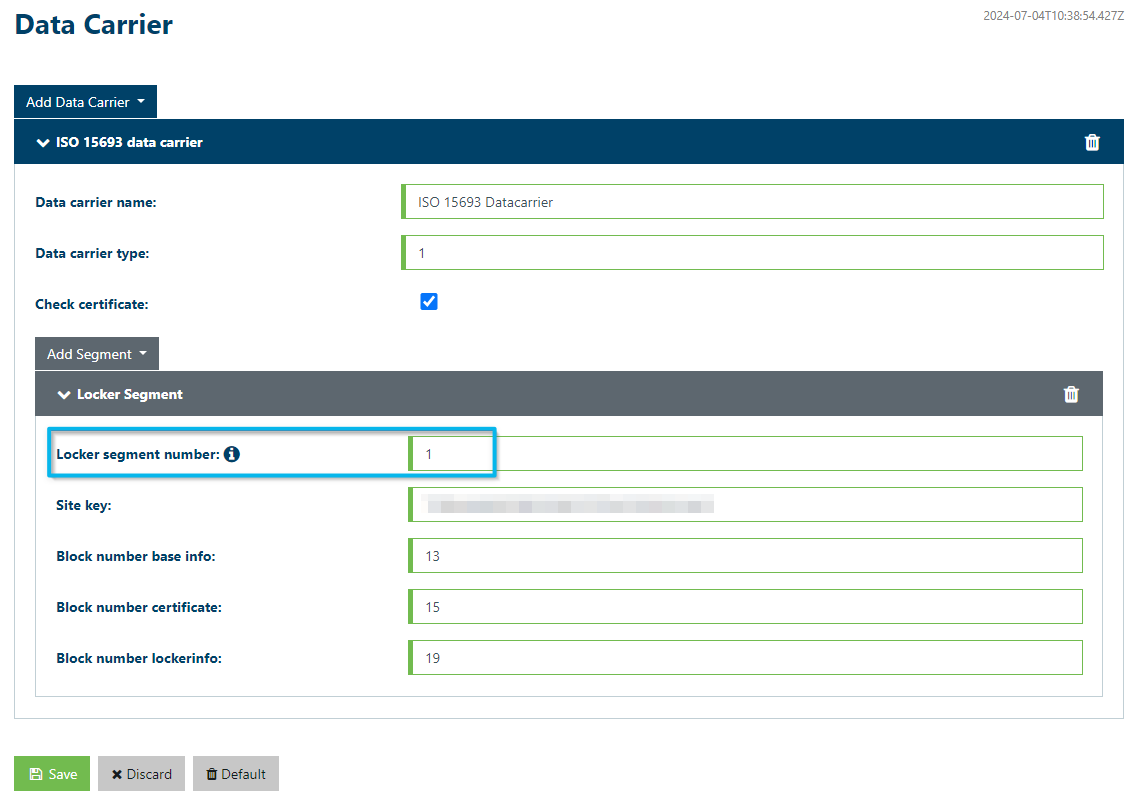

ISO15693
Currently, only Gantner segment types are supported.
